Item Name：Differential Pressure Switch
Model Number：LED-C-930
Material：
Size：
Package Info：
Payment Terms：
Shipping Method：
Minimum Order Quantity：
Certificate：
LED-C-930 Differential Pressure Switch
INTRODUCTION
TEB930 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.
SPECIFICATION

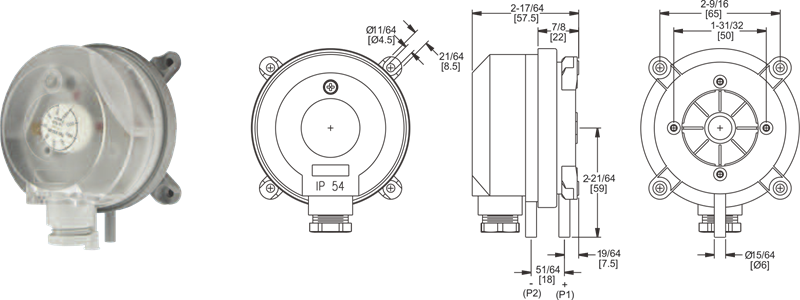

Conversion: 1in/ H₂O=249Pa 1mbar=100PaDIMENSIONAL DRAWING
INTRODUCTION
TEB930 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.
SPECIFICATION
| Model | LED-C-930 |
| Media | Air, non-combustible and non-aggressive gases. |
| Max Operating | 10kPa |
| Mounting | Diaphragm in any vertical plane |
| Degree of Protection | IP54(With Cover), IP00(without Cover) |
| Operating Temperature | -40℃ to + 85℃ |
| Range |
930.80 20-200Pa 930.81 30-300Pa 930.82 50-500Pa 930.83 200-1000Pa 930.85 500-2500Pa 930.86 1000-4000Pa |
| Contact Arrangement | SPDT |
| Electrical Rating |
Resistance: initaial:＜50 milliohms Current: 1.5A(0.4A)/250V |
| Terminal | 6.3mm×0.8blade or screw terminal |
| Connection | Φ6.0 mm for tube connection |
